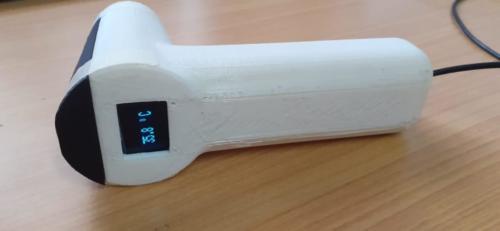

How to make an IR Thermometer?

Electronic components required:- Nodemcu, OLED display (0.96”), MLX90614 (IR Temperature Sensor), micro USB cable, power bank or mobile phone (power source)

Casing Cover:- Download here Casing cover stl. files (1 download) for 3D printing

Steps:

• Make the connections as per the circuit diagram.
• Upload the code into the module using arduino software.
• Connect the micro USB cable to the power bank or mobile phone.
• Place the sensor at a distance of 30mm – 70mm from the forehead/object to verify the temperature.
• Place the sensor, nodemcu and oled in the casing

Your IR Thermometer is ready to use now!!!

For 3D printing & any queries please contact:-sayali@web.venturecenter.co.in ; anjan@web.venturecenter.co.in,

For hardware design and code please contact:- info@bmek.in
